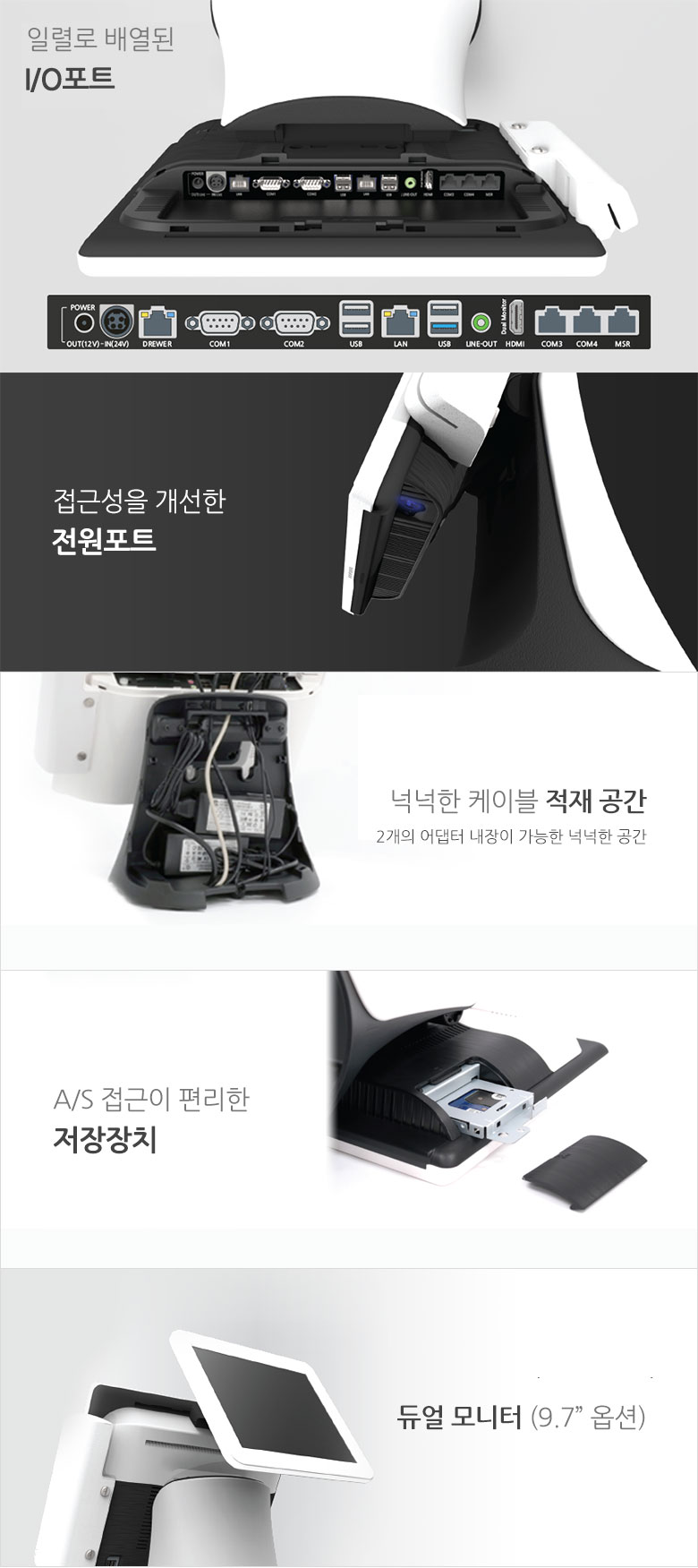

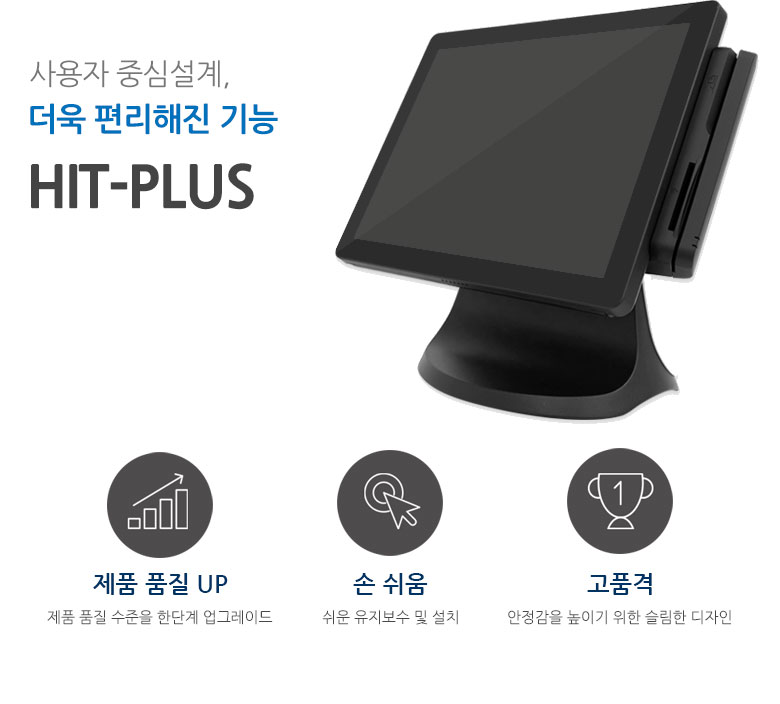

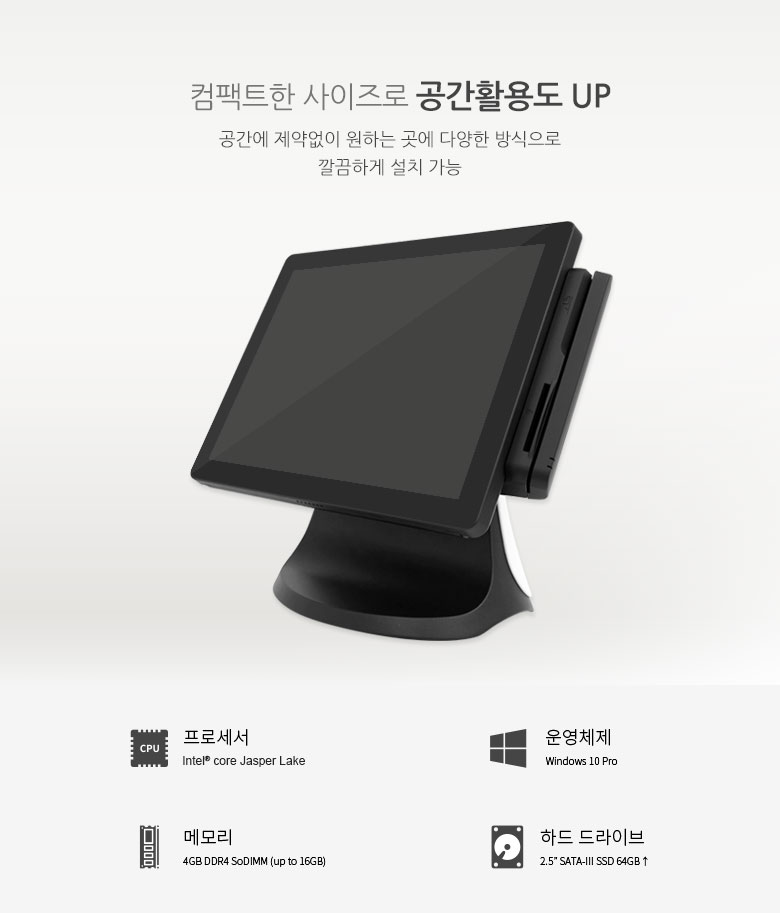

HIT-PLUS
| 구 분 | 항 목 | 사 양 |
|---|---|---|
| 기본 사양 | CPU & Chipset | Intel® Celeron Quad-Core Jasper Lake |
| Memory | DDR4 4GB↑ | |
| Storage | 2.5", SATA-III SSD 64GB↑, Dual-mSATA(RAID) | |
| Display | 15", 1024 X 768, 24Bit, Luminance : 300 cd/㎡, Backlight : LED | |
| Dual Display port | 1EA HDMI, Intel® UHD Graphics | |
| LAN | 1EA(Realtek Gigabit LAN) | |
| Serial | 5EA(DSUB-9p x 2EA / RJ-45 x 3EA) | |
| USB | 4EA(I/O)(USB3.0&2.0), 2EA(Rear)(USB 2.0) | |
| Audio | Line-Out | |
| Speaker | 1EA(1W) | |

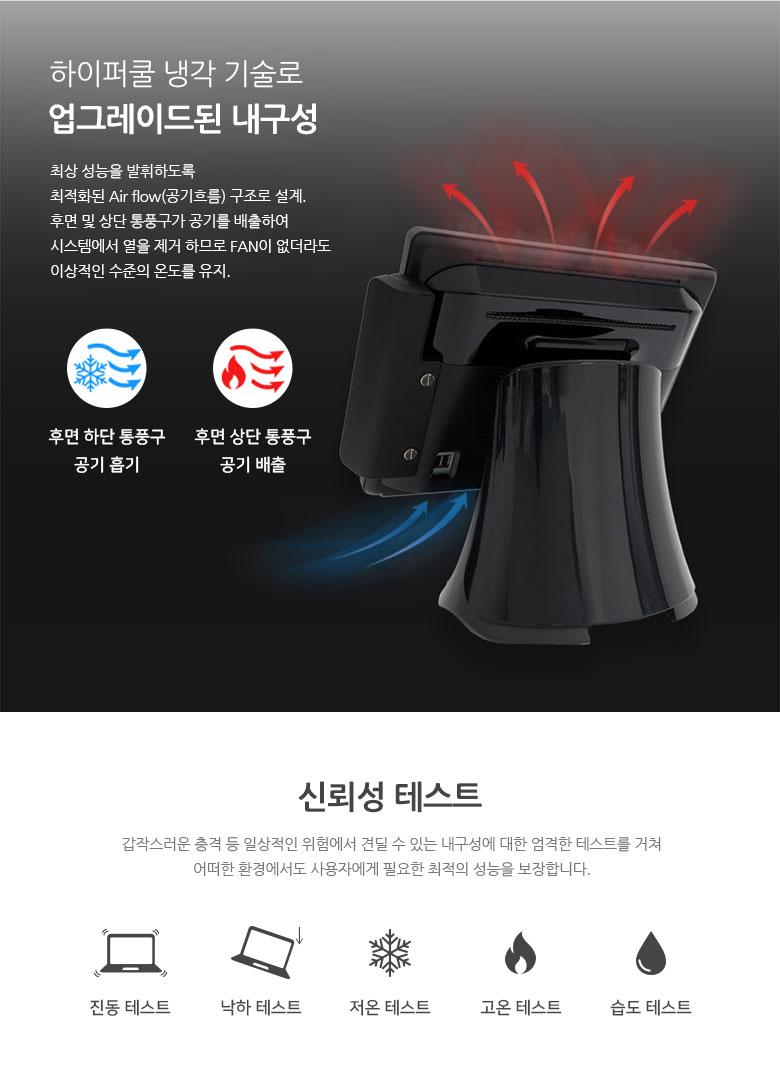

| Cooler & FAN | Fanless | |
| Cash Drawer | 1EA(RJ-11, 24V/12V) | |
| Power Adaptor | 60[W] Adaptor, Input AC 100~240V/50~60HZ, DC 24V/2.5A | |
| Dimension(mm) | 384(W) x 347(H) x 225(D) (Normal Angle, With Stand) | |
| Weight | 4.8kg | |
| OS supported | Microsoft Windows 10 IoT / Linux | |
| 옵션 사양 | OS | Microsoft Windows 10 IoT 64bit |
| Storage | 2.5", SATA-III HDD 500GB↑ | |
| Touch Panel | 15” Projective Capacitive Touch(Bezelless type) | |
| Dual Display | 9.7", TFT-LCD, 1024x768, LED panel (Touch) | |
| Customer Display | VFD type, 20 Characters X 2 Lines, Serial(RS-232C) | |
| Secure Card Reader | EMV1, EMV2, MSR ISO Track1/2/3 | |
| Wall Mount | Fixed Type / Swivel Type (75x75, 100x100mm VESA) | |
| Case Color | Black & White / Black |
G250
| Model | G250 | ||
|---|---|---|---|
| System | Processor | Intel® Celeron™ Quad-Core J4125 | |
| Chipset/BIOS | Intel® Gemini Lake SoC / AMI | ||
| Storage | 2.5" SSD 64GB (128GB Optional) | ||
| Memory | 4GB, DDR4 2400MHz x 1 Slot (Max 16GB, Optional) |
||
| Graphics | Intel® UHD Graphics 600 | ||
| Expansion Slot | 1 x m.2NVm2, 1 x m.2 WiFi & Bluetooth(Optional) |
||
| Multi Monitor | 3(# of Displays Supported) - UP to 3 Monitors (Optional) |
||
| OS | Windows 10 IoT Entry (64bit) | ||
| LCD Display | Type | 15” LCD with WLED backlight | |
| Resolution | 1024 x 768 | ||
| Touch | True-Flat Capacitive 10 Point Multi-Touch | ||
| I/O Interface | Serial | 6(DB9 x 3, RJ50(RJ45) x 2, RJ11 x 1) COM1, 3, 5(DB9): +5V on Pin #9, Selectable by BIOS COM2, 4 (RJ50, RJ45): Support +5V and 12V for Special Devices and can be used for Kitchen Printer COM6(RJ11): USB 2.0 and RS232 with +5V/1A for Card Reader |
|
| USB | 4 x USB 3.0 (2 x Rear Top, 2 x Rear Bottom), 3 x USB 2.0 (Rear Bottom x 2, RJ11 x 1) |
||
| LPT(Parallel) | 1(LPT / DB25 on Rear Bottom) | ||
| Audio | 1 x Audio-out / 3.5mm(Changeable for MIC) | ||
| Display Port | 1 x DisplayPort(Included 1 x USB 2.0 / Power Delivery +12V) ＊Can be used for HDMI and DVI, VGA Monitor by Converter Cable |
||
| LAN | 1 x RJ45(Base-T 10/100/1000 Ethernet) | ||
| Peripheral Options | 2nd Display | Type | 9.7" Display |
| Resolution | 1024 x 768 | ||
| Functions | Multi Display Function by DP MST Hub/Supported Standard HDMI, DVI, DP by each Cable Customer | ||
| Customer Display | VFD Type (Alphabet & Numeric, 20 Characters x 2 Lines) | ||
| Card Reader (MSR/SCR) | Smart Card Reader: ISO/IEC7816 EMV Level 1 Magnetic Stripe Reader: ISO 7811 ID-1 All Tracks ＊Interface: USB(HID) and RS232C(COM6) |
||
| Dallas Reader | Dallas Reader(i-button): 6 Characters/Prefix and Suffix ＊Interface: USB(HID) and RS232C(COM6) |
||
| Physical Dimension | Dimernsion (W x D x H mm) |
362mm x 237mm x 336mm | |
| Weight | 5.0Kg | ||
| Environment | Power Supply | DC 12V/5A (AC 100V~240V, 60W) | |
| Temperature | Operating: 0~50℃ at 10% to 90% Humidity | ||
| Certifications | CE, CB, FCC, KC | ||

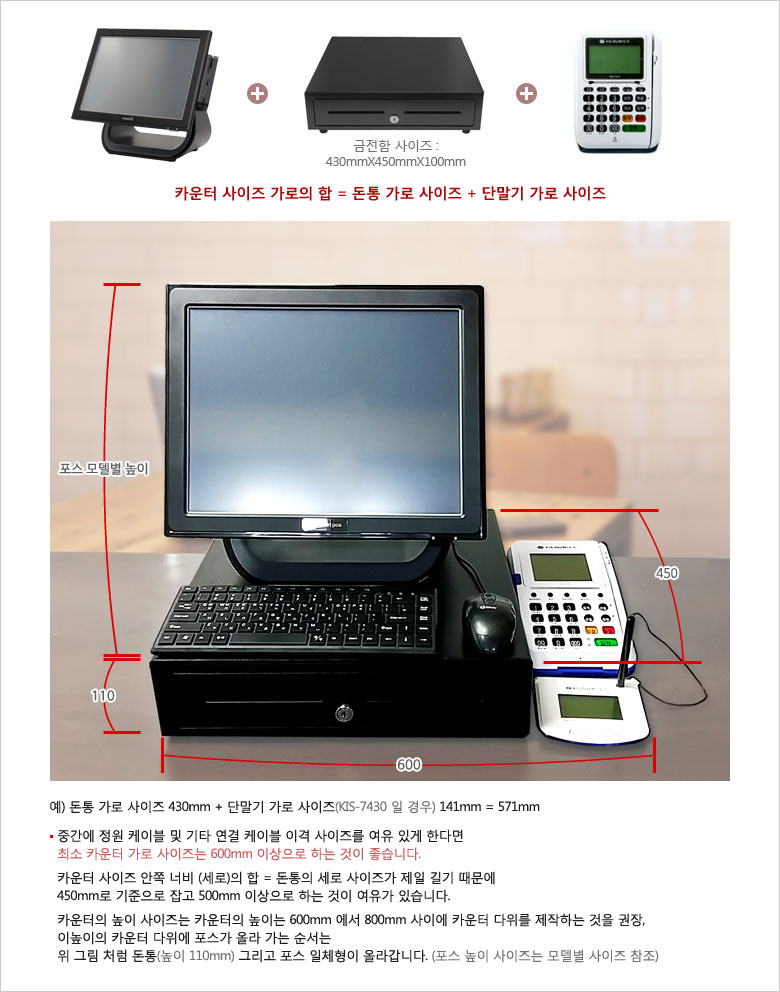

카운터 구성 기본 사이즈
